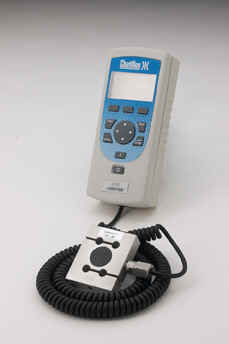

Chatillon® DFS-R-ND Series
Digital Indicator for Load and Torque Measurements

Click here for a .pdf spec sheet

The Chatillon® DFS-R-ND Series supplies accurate load and torque measurement in a common gauge. Ideal for handheld or test stand applications, the DFS-R-ND may be equipped with smart loadcells or torque sensors. The auto-recognition feature knows whether a load or torque measurement is required. Measurement accuracy is better than 0.25% full scale (higher accuracy available). A large, easy-to-read, high resolution dot matrix LCD display supports a variety of standard gauge functions including normal and peak readings, high/low limits, setpoints, pass/fail results, statistical results, load averaging, load comparisons, % and sharp break detection, sensor actuation and direction. Measurements are displayed in ozf, gf, lbf, kgf and N units or oz-in, g-cm, lb-in, N-cm and N-m units. The DFS-R-ND gauge comes standard with RS-232 cable, carrying case, battery adapter/charger, and Certificate of Conformance.
The DFS-R-ND is supplied with our NEXYGEN DF Series software.

Standard Gauge Measurement Functions (Requires Sensor)

  • Normal Tensile, Compression and Torque Measurement
  • Peak Tension, Compression and Torque Measurement
  • Sharp and % Break Detection
  • Contact Closure
  • Pass-Fail Limits
  • High & Low Setpoint Limits
  • Load Average
  • Time Average
  • Load Comparison
  • Statistical Calculations

Common Accessories

Type Part No.
Capacity
Thread
Mates To
Standard
Chisel Point SPK-FMG-008A
100 lbf
#10-32F
#10-32M
Option
Point SPK-FMG-009A
100 lbf
#10-32F
#10-32M
Option
Notch SPK-FMG-010A
100 lbf
#10-32F
#10-32M
Option
Flat SPK-FMG-011A
100 lbf
#10-32F
#10-32M
Option
Hook SPK-FMG-012A
50 lbf
#10-32F
#10-32M
Option
Hook SPK-FMG-012B
100 lbf
#10-32F
#10-32M
Option
Extension Rod SPK-FMG-013A
100 lbf
#10-32F
#10-32M
Option
Chisel Point SPK-FMG-008B
500 lbf
5/16-18F
5/16-18M
Option
Point SPK-FMG-009B
500 lbf
5/16-18F
5/16-18M
Option
Notch SPK-FMG-010B
500 lbf
5/16-18F
5/16-18M
Option
Flat SPK-FMG-011B
500 lbf
5/16-18F
5/16-18M
Option
Hook SPK-FMG-012C
500 lbf
5/16-18F
5/16-18M
Option
Extension Rod SPK-FMG-013B
500 lbf
5/16-18F
5/16-18M
Option
Battery Charger, 120/230V SPK-DF-US120
Yes
Carrying Case SPK-DF-118
Yes

Chatillon® SLC Series
Interchangeable Loadcell Sensors

Click here for a .pdf spec sheet

The Chatillon® SLC Series loadcells are designed to be used exclusively with the Chatillon DFS-R-ND Series digital indicator. SLC loadcells feature "smart technology". The DFS-R-ND digital indicator recognizes the loadcell and automatically scales the gauge to the capacity of the loadcell connected. Load readings are selectable in gf, ozf, lbf, kgf and N. The SLC loadcells have mechanical overload protection to 150% full scale. Because of the "smart technology" the loadcell will maintain a history of overload occurrences. SLC loadcells have a retractable cord, which may fully extend to over 8 ft. (2.4 m). A 15-pin D Connector plugs into the DFS-R-ND housing.

Load Capacities

Model
ozf
gf
lbf
kgf
N
SLC-250G
8 x 0.002
250 x 0.05
0.5 x 0.0001
0.2 x 0.0001
2.5 x 0.0005
SLC-0002
32 x 0.005
1000 x 0.1
2 x 0.0002
1 x 0.0001
10 x 0.001
SLC-0010
160 x 0.02
5000 x 0.5
10 x 0.001
5 x 0.0005
50 x 0.005
SLC-0025
400 x 0.05
10,000 x 1
25 x 0.002
10 x 0.001
100 x 0.01
SLC-0050
800 x 0.1
25,000 x 2
50 x 0.005
25 x 0.002
250 x 0.02
SLC-0100
1600 x 0.2
50,000 x 5
100 x 0.01
50 x 0.005
500 x 0.05
SLC-0200
-
-
200 x 0.02
100 x 0.01
1000 x 0.1
SLC-0500
-
-
500 x 0.05
250 x 0.02
2000 x 0.2
SLC-1000
-
-
1000 x 0.1
500 x 0.05
5000 x 0.5
SLC-2000
-
-
2000 x 0.2
1000 x 0.1
10000 x 1
SLC-5000
-
-
5000 x 0.5
2500 x 0.2
20000 x 2
SLC-10000
-
-
10000 x 1
5000 x 0.5
50000 x 5

Chatillon® STS Series
Interchangeable Torque Sensors

The Chatillon® STS Series Torque Sensors are used exclusively with Chatillon DFS-R-ND Series digital gauges. These high accuracy sensors feature "smart technology" that is recognized by the force gauge. The gauge can determine the sensor capacity, scaling requirements and determine sensor status including overload history. Torque may be measured in oz-in, lb-in, N-cm, kg-cm and N-m in either clockwise or counterclockwise direction. Sensor features a jacobs chuck type connection for holding samples. The cord extends to nearly 8 feet (2.5 m).

Click here for a .pdf spec sheet


Models

Model
in-oz
N-cm
in-lb
kg-cm
N-m
STS-0003
50 x 0.005
35 x 0.005
3 x 0.0005
3.5 x 0.0005
0.35 x 0.00001
STS-0012
192 x 0.02
125 x 0.02
12 x 0.002
12.5 x 0.002
1.25 x 0.0002
STS-0050
800 x 0.1
500 x 0.05
50 x 0.005
50 x 0.005
5 x 0.0005
STS-0100
-
1000 x 0.1
100 x 0.01
100 x 0.01
10 x 0.001
STS-0200
-
2000 x 0.2
200 x 0.02
200 x 0.02
20 x 0.002
